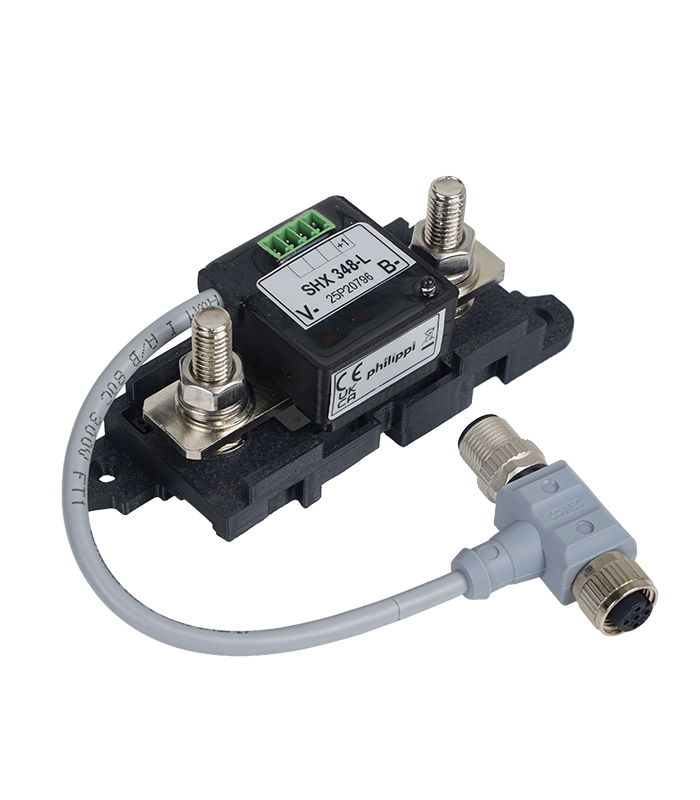

Shunt for current measurement SHX 300 L

Digital current measuring shunt fot installation in the negative line of a cha rging source or consumer. The power supply is connected via the pluggable terminal.

Connection bolts M8, P-BUS connector M12.T.

Current carrying capacity: 300 A, 600 A 1 min, 1500 A 0,5 s.

Power consumption: 20 mA (5 mA sleep-mode)
Operating voltage: 8 – 32 V
Dimension range: 10 mA – 300 A
Dimensions: L 118 x W 40 x H 65 mm
